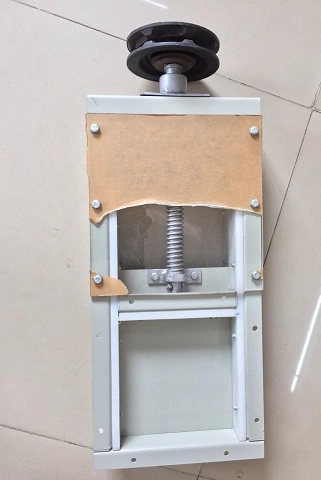

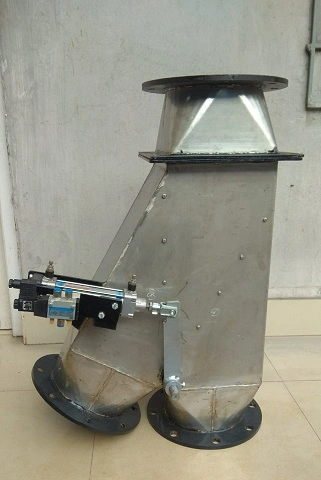

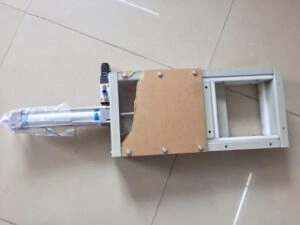

Discharge/ Divertor Gates
Pnuematic, motorized and manually operated slide gates to control feed of material from silo or hopper. Options for fitting reed switches or limit switches.

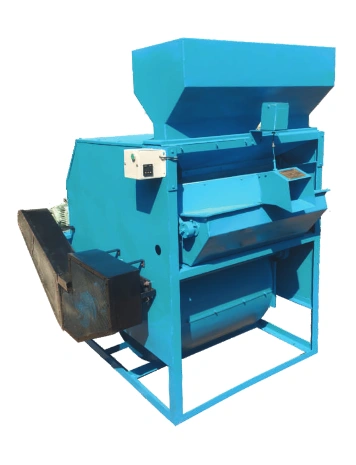

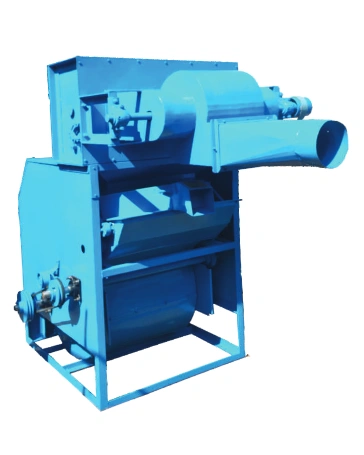

Destoner
Introduction
- For 100% Separation of heavy particles such as stone, glass & metal from grain
- Specially useful for separation of stones which are of similar size as grain
- Suitable for Paddy, Rice, Dal, Wheat, Oilseeds, Sesame, tea etc.
Working Principle
- The grain to be cleaned falls on an inclined vibrating deck fitted with a custom made screen. Using positive air pressure, a fluidized bed is created on the screen. The difference in specific gravity of stones and grain causes the stone, which is heavier, to travel up the deck while the grain flows down the incline.
The benefits of Damodar Destoner are
- Damodar Destoner guarantees 100% separation of stone of all sizes, even those smaller than the grain
- Damage to rubber rolls is prevented by removing the stones prior to dehusking
- Rigid steel construction for longevity and how maintenance
- Additional blower may be added for dust removal
- Low power consumption
- All our machines carry DAMODAR guarantee of service & availability of spares
- All our machines carry DAMODAR guarantee of service & availability of spares
| Motor Power | Dimension (in mm) | ||||
|---|---|---|---|---|---|
| HP | RPM | Length | Width | Height | |
| 2 MT | 2 | 1500 | 1600 | 1400 | 1750 |
| 2 MT with Dust blower | 5 | 1500 | 2350 | 1400 | 1900 |
| 4 MT | 3 | 1500 | 1800 | 1600 | 1850 |
| 4 MT with Dust blower | 5 | 1500 | 2550 | 1600 | 2000 |
